Middleware

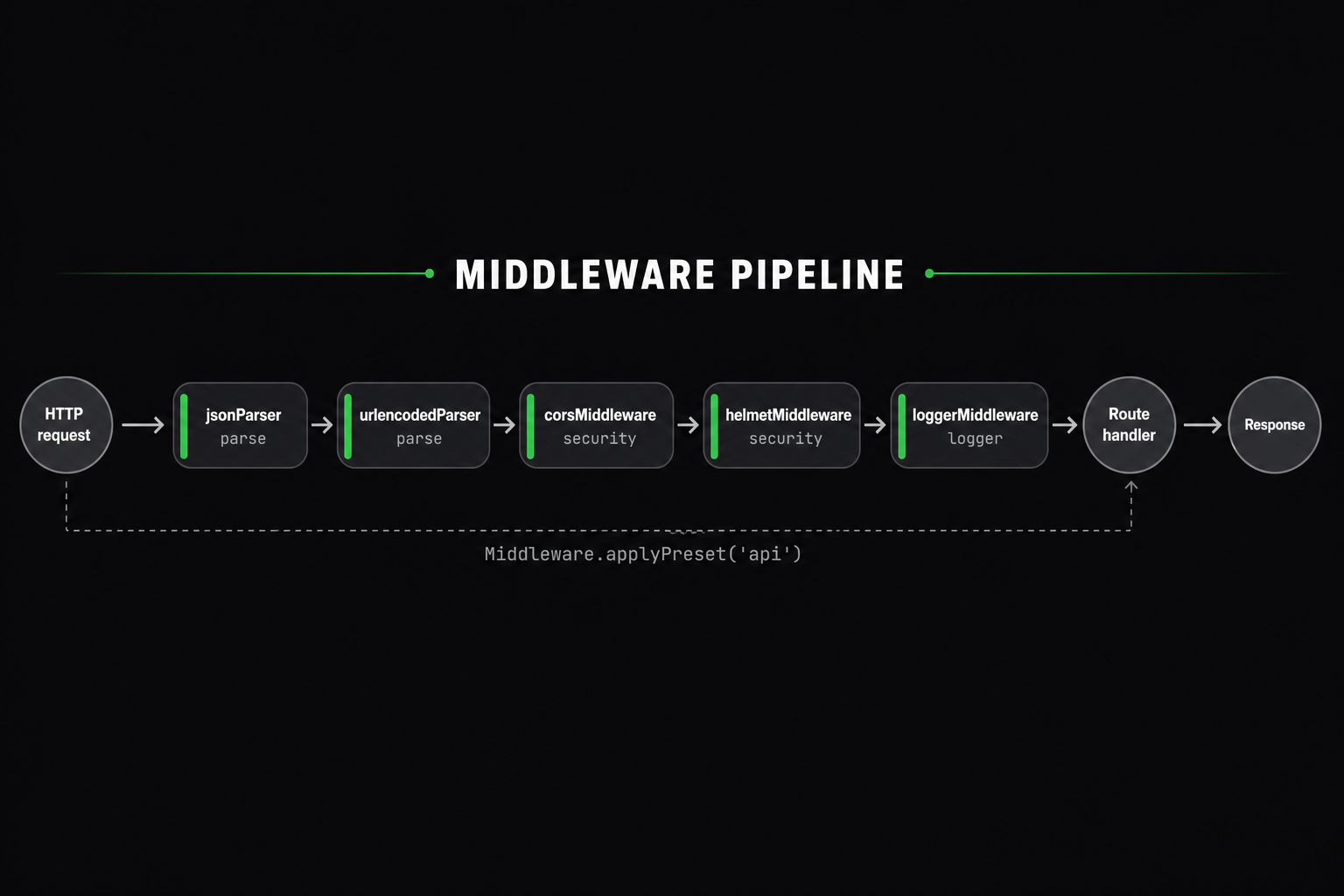

Middlewares play a crucial role in the request-response cycle of an ExpressoTS application. They allow you to execute code, modify request and response objects, end the cycle, or pass control to the next middleware in the stack. To prevent request timeouts, it's important to call next() unless your middleware completes the cycle.
ExpressoTS supports function and class-based middleware. Function-based middleware is the simplest form of middleware, while class-based middleware allows you to create reusable middleware with a constructor and methods.
ExpressoTS integrates smoothly with Express middleware, allowing you to leverage its extensive ecosystem to enhance your application.
Add middleware
ExpressoTS application supports adding middleware globally to the application as well as per route. It offers all the middleware supported by Expressjs team out-of-the-box.
In the app.ts file, you can add middleware to the application using the this.Middleware property. The this.Middleware property is an instance of the Middleware class, which provides a unified API for configuring middleware.
export class App extends AppExpress {
async configureServices(): Promise<void> {
// Unified body parsing (JSON, URL encoded, cookies)
this.Middleware.parse({
json: { limit: "10mb" },
urlencoded: { extended: true },
cookies: true,
});
// Unified security (CORS, Helmet, rate limiting)
this.Middleware.security("api");
// Error handling
this.Middleware.setErrorHandler({
showStackTrace: await this.isDevelopment(),
});
}
}
In ExpressoTS, middleware options are available to be added as needed, but the actual middleware packages are not pre-installed to keep the application lightweight. When you choose to add middleware, the system checks if the necessary package is installed.
If the middleware package isn't installed, the application will warn you with a message, but will continue running.
🖥️ Middleware [cors] not installed. Please install it using your package manager.
Once you install the required middleware, the warning will disappear on hot reload, and the middleware will be ready for use.
Unified Middleware API (v4)
ExpressoTS v4 introduces a unified, intuitive middleware API:
| Method | Description |
|---|---|
parse() | Unified body parsing (JSON, URL encoded, cookies) |
security() | Unified security (CORS, Helmet, rate limiting) with presets |
compress() | Auto-detect compression (shrink-ray or compression) |
static() | Enhanced static file serving with SPA support |
logger() | Pluggable logging (auto-detects pino, winston, morgan) |
register() | Middleware registry for route-level use |
when() | Conditional middleware execution |
applyPreset() | Apply built-in presets (api, web, spa, microservice, graphql, minimal, development, production) |
definePreset() | Define custom middleware presets |
add() | Add custom middleware |
setErrorHandler() | Configure error handling |
addValidation() | Smart validation with auto-detection |
addContentNegotiation() | Content negotiation with multiple formatters |
parse() - Unified Body Parsing
Replaces individual body parsers with one unified method:
// Before (v3)
this.Middleware.addBodyParser();
this.Middleware.addUrlEncodedParser();
this.Middleware.addCookieParser();
// After (v4) - One unified call
this.Middleware.parse({
json: { limit: "10mb" },
urlencoded: { extended: true },
cookies: true,
});
// Or with defaults
this.Middleware.parse();
security() - Unified Security
Replaces individual security middleware with presets:
// Before (v3)
this.Middleware.addCors();
this.Middleware.addHelmet();
this.Middleware.addRateLimiter();
// After (v4) - Use security presets
this.Middleware.security("standard"); // Balanced security
this.Middleware.security("strict"); // Maximum security
this.Middleware.security("api"); // API-optimized
this.Middleware.security("minimal"); // Development-friendly
this.Middleware.security("relaxed"); // Minimal restrictions
compress() - Auto-Detect Compression
// Auto-detects shrink-ray or compression
this.Middleware.compress({ threshold: 1024 });
static() - Enhanced Static Files
// Basic static file serving
this.Middleware.static({
path: path.join(process.cwd(), "public"),
prefix: "/static",
maxAge: "1d",
etag: true,
});
// SPA mode with fallback
this.Middleware.static({
path: "./dist",
spaMode: true,
fallback: "index.html",
});
logger() - Pluggable Logging
// Auto-detects pino → winston → morgan → console
this.Middleware.logger();
// Or specify implementation
this.Middleware.logger({ implementation: "pino" });
If you add a middleware that is not installed as dependency, the application will throw a warning message and continue to run.
Middleware Registry
The middleware registry allows you to register named middleware for use at the route level:
export class App extends AppExpress {
async configureServices(): Promise<void> {
this.Middleware.parse();
// Register individual middleware
this.Middleware.register("verify-jwt", verifyJwtMiddleware);
this.Middleware.register("require-auth", requireAuthMiddleware);
this.Middleware.register("request-id", requestIdMiddleware);
// Register middleware chains
this.Middleware.register("auth-chain", [verifyJwt, requireAuth]);
this.Middleware.register("admin", [verifyJwt, requireAuth, requireAdmin]);
}
}
Then use in controllers with the @middleware() decorator:
@controller("/admin")
@middleware("admin") // Use registered chain
export class AdminController {
@Get("/dashboard")
@middleware("verify-jwt") // Use single middleware
dashboard() {
return { admin: true };
}
}
Conditional Middleware
Execute middleware based on conditions:
export class App extends AppExpress {
async configureServices(): Promise<void> {
this.Middleware.parse();
// Only in development
this.Middleware.when(process.env.NODE_ENV === "development", () => {
console.log("🔧 Development mode: Extra logging enabled");
this.Middleware.logger();
});
// Only in production
this.Middleware.when(process.env.NODE_ENV === "production", () => {
this.Middleware.compress();
this.Middleware.security("strict");
});
}
}
Middleware Presets
Pre-configured middleware bundles for common scenarios. Pick the one that matches your workload and override any category if needed.
export class App extends AppExpress {
async configureServices(): Promise<void> {
this.Middleware.applyPreset("api");
}
}
Built-in presets
| Preset | Parse | Security | Compression | Logger | Best for |
|---|---|---|---|---|---|
api | JSON 10mb, urlencoded 10mb | Helmet + CORS (methods/headers/credentials) + rate limit 100/min | level 6 | auto | REST APIs, mobile/SPA backends |
web | JSON 5mb, urlencoded 5mb, cookies | Helmet + permissive CORS, no rate limit | default | auto | Server-rendered web apps with sessions |
spa | JSON 5mb, urlencoded 5mb | Helmet + permissive CORS | default | none | SPA backends with static fallback |
microservice | JSON 1mb, urlencoded 1mb | None (assumes trusted internal network) | level 6 | none | Service-to-service communication |
graphql | JSON 50mb | Helmet + POST-only CORS | default | none | GraphQL servers (single endpoint) |
minimal | JSON + urlencoded defaults | None | none | none | Quick prototypes |
development | JSON 50mb, urlencoded 50mb | Relaxed (no Helmet, permissive CORS) | none | morgan | Local development |
production | JSON 10mb, urlencoded 10mb | Strict (Helmet + CORS origin: false + rate limit 60/min) | level 6 | auto (silent in test) | Shipped deployments |
Preset default values
Below is the exact configuration each built-in preset resolves to at runtime. Use this reference when overriding specific values.
api: REST APIs, mobile/SPA backends
{
parse: {
json: { limit: "10mb" },
urlencoded: { extended: true, limit: "10mb" },
},
logger: { implementation: "auto" },
security: "api", // resolves to:
// headers: "helmet" (default Helmet options)
// cors: {
// origin: true,
// credentials: true,
// methods: ["GET", "POST", "PUT", "PATCH", "DELETE", "OPTIONS"],
// allowedHeaders: ["Content-Type", "Authorization", "X-Requested-With"],
// }
// rateLimit: { windowMs: 60000, max: 100 }
compress: { level: 6 },
}
web: Server-rendered web apps with sessions
{
parse: {
json: { limit: "5mb" },
urlencoded: { extended: true, limit: "5mb" },
cookies: true,
},
logger: { implementation: "auto" },
security: "standard", // resolves to:
// headers: "helmet" (default Helmet options)
// cors: { origin: true } (permissive)
// rateLimit: false
compress: true, // default compression level
}
spa: SPA backends with static fallback
{
parse: {
json: { limit: "5mb" },
urlencoded: { extended: true, limit: "5mb" },
},
security: "standard", // Helmet + permissive CORS, no rate limit
compress: true,
}
microservice: Service-to-service communication
{
parse: {
json: { limit: "1mb" },
urlencoded: { extended: false, limit: "1mb" },
},
// No security (internal network, behind API gateway)
// No logger
compress: { level: 6 },
}
graphql: GraphQL servers (single endpoint)
{
parse: { json: { limit: "50mb" } },
security: {
headers: "helmet",
cors: { origin: true, methods: ["GET", "POST", "OPTIONS"] },
// No rate limit
},
compress: true,
}
minimal: Quick prototypes
{
parse: true, // JSON 100kb default + urlencoded { extended: true }
// No security, compression, or logger
}
development: Local development
{
parse: {
json: { limit: "50mb" },
urlencoded: { extended: true, limit: "50mb" },
},
logger: { implementation: "morgan", options: { format: "dev" } },
security: "relaxed", // resolves to:
// headers: false (no Helmet)
// cors: { origin: true }
// rateLimit: false
// No compression
}
production: Shipped deployments
{
parse: {
json: { limit: "10mb" },
urlencoded: { extended: true, limit: "10mb" },
},
logger: { implementation: "auto", disableInTest: true },
security: "strict", // resolves to:
// headers: "helmet" (default Helmet options)
// cors: { origin: false, credentials: true }
// rateLimit: { windowMs: 60000, max: 60 }
compress: { level: 6 },
}
Security tier reference
The security field accepts a string preset name or a full SecurityConfig object. Here are the five built-in security tiers:
| Tier | Helmet | CORS | Rate Limit |
|---|---|---|---|
"api" | On (defaults) | origin: true, credentials: true, explicit methods + allowedHeaders | 100 req / 60s |
"standard" | On (defaults) | origin: true (permissive) | Off |
"strict" | On (defaults) | origin: false, credentials: true | 60 req / 60s |
"relaxed" | Off | origin: true | Off |
"minimal" | Off | origin: true | Off |
Overriding a preset
applyPreset() accepts an override object that deep-merges with the preset defaults. Set any category to false to disable it, or pass an options object to tune it.
export class App extends AppExpress {
async configureServices(): Promise<void> {
this.Middleware.applyPreset("api", {
logger: false,
parse: { json: { limit: "25mb" } },
security: {
cors: { origin: "https://myapp.com", credentials: true },
rateLimit: { windowMs: 60_000, max: 30 },
},
});
}
}
Custom presets
Use definePreset() to register a reusable named preset, then apply it like any built-in.
export class App extends AppExpress {
async configureServices(): Promise<void> {
this.Middleware.definePreset("my-company-api", {
parse: { json: { limit: "5mb" }, urlencoded: true },
logger: { implementation: "auto" },
security: "api",
compress: true,
});
this.Middleware.applyPreset("my-company-api");
}
}
Adding Custom Middleware
Use the add() method for custom middleware:
// Function middleware
this.Middleware.add((req, res, next) => {
req.requestTime = Date.now();
next();
});
// Express middleware from NPM
import cors from "cors";
this.Middleware.add(cors({ origin: "https://example.com" }));
// Class-based middleware
this.Middleware.add(new CustomMiddleware());
Middleware in controller
If you want to apply a middleware to all routes under a specific controller, you can add it to the @controller() decorator. You can pass as many middlewares as you want to the @controller() decorator.
@controller("/app", express.json())
export class AppController {
@Post("/create")
createApp() {
return "Create App";
}
@Patch("/update")
updateApp() {
return "Update App";
}
}
Middleware in http method
Or you add a middleware to a specific route in the controller class through the http Method decorators.
@controller("/")
export class AppController {
@Post("", express.json())
execute() {
return "Hello World";
}
}
Create expressoTS middleware
To create a custom class-based middleware, you need to extend the ExpressoMiddleware class and implement the use method. The use
method is the entry point of the middleware, and it receives the Request, Response, and NextFunction objects.
Use the CLI to create a new middleware class:
expressots g mi middleware-name
import { ExpressoMiddleware, provide } from "@expressots/core";
import { NextFunction, Request, Response } from "express";
@provide(ExampleMiddleware)
export class ExampleMiddleware extends ExpressoMiddleware {
use(req: Request, res: Response, next: NextFunction): void | Promise<void> {
throw new Error("Method not implemented.");
}
}
An example of a custom class-based middleware implementation:
class CustomMiddleware extends ExpressoMiddleware {
private isOn: boolean;
constructor(isOn: boolean) {
super();
this.isOn = isOn;
}
use(req: Request, res: Response, next: NextFunction): void | Promise<void> {
// Do something
if (this.isOn) {
next();
} else {
res.status(403).send("Forbidden");
}
}
}
Custom middleware allows you to pass parameters to the constructor and use them as options in the use method of your middleware. This way, you can
create reusable middleware with different configurations.
View middleware pipeline
You can view all the middlewares added to the application using the this.Middleware.viewMiddlewarePipeline() method.
The goal of the viewMiddlewarePipeline method is to provide a visual representation of the middleware pipeline in the application.

V4 Middleware Enhancements
ExpressoTS v4 introduces powerful new middleware capabilities:
Conditional Middleware
Execute middleware based on conditions:
import { when, unless } from "@expressots/adapter-express";
@Get("/admin",
when(req => req.hostname.startsWith("admin."), AdminMiddleware),
AuthMiddleware
)
async adminHandler() {}
@Get("/public",
unless(req => req.headers.authorization, AuthMiddleware)
)
async publicHandler() {}
Middleware Composition
Group and sequence middleware:
import { combine, sequence } from "@expressots/adapter-express";
// Combine multiple middleware into a reusable group
@Get("/api", combine(AuthMiddleware, LoggingMiddleware, RateLimitMiddleware))
async apiHandler() {}
// Sequence middleware with dependencies
@Get("/data", sequence(ValidateMiddleware, TransformMiddleware, ProcessMiddleware))
async dataHandler() {}
Class Reference Support
Use class references without new:
// Before (still works)
@Get("/", new AuthMiddleware())
// After (v4 recommended - cleaner API)
@Get("/", AuthMiddleware) // No 'new' needed!
Middleware Presets
Pre-configured middleware bundles applied with a single call. See the Middleware Presets section above for the full catalog and override patterns.
export class App extends AppExpress {
async configureServices(): Promise<void> {
this.Middleware.applyPreset("api"); // REST API defaults
this.Middleware.applyPreset("production"); // Hardened production defaults
this.Middleware.applyPreset("development"); // Relaxed local-dev defaults
}
}
Performance Profiling
Built-in middleware profiler:
export class App extends AppExpress {
async configureServices(): Promise<void> {
// Enable profiling
this.Middleware.enableProfiling();
// Add middleware
this.Middleware.addBodyParser();
this.Middleware.addCors();
}
async postServerInitialization(): Promise<void> {
// Access profiler stats
const stats = this.Middleware.getProfilerStats();
console.log(stats);
// {
// "bodyParser": { avgTime: 2.3, callCount: 150, errors: 0 },
// "cors": { avgTime: 0.5, callCount: 150, errors: 0 }
// }
}
}
Pipeline Introspection
Query middleware pipeline at runtime:
// Get ordered list of all middleware
const pipeline = this.Middleware.getMiddlewarePipeline();
// Get detailed information
const info = this.Middleware.getMiddlewareInfo("cors");
// Filter by category
const security = this.Middleware.getMiddlewarePipeline({ category: "security" });
New v4 Middleware
| Middleware Name | Description |
|---|---|
| addContentNegotiation | Add content negotiation with multiple formatters |
| addValidation | Add smart validation (zero-config with @validatedBody()) |
| addHealthCheck | Add health check endpoint |
| applyPreset | Apply middleware preset (api, web, production, development, ...) |
Content Negotiation
Built-in content negotiation with multiple formatters:
export class App extends AppExpress {
async configureServices(): Promise<void> {
this.Middleware.addContentNegotiation({
defaultFormat: "json",
formatters: {
json: { enabled: true },
xml: { enabled: true },
csv: { enabled: true },
yaml: { enabled: true },
},
});
}
}
Smart Validation
Zero-config validation with helpful error messages:
import { validatedBody } from "@expressots/core";
@Post("/users")
createUser(@validatedBody() dto: CreateUserDto) {
// dto is automatically validated
// TypeScript types are inferred
return this.userService.create(dto);
}
Advanced Patterns
Async response handling with callback-based middleware
ExpressoTS v4 has a smart-response handler: when your controller method returns undefined, the framework calls res.end() automatically (or returns a 404 for GET, or a 204 for DELETE/PUT/PATCH). This is great for clean handlers - until you mix it with callback-based async middleware like multer, busboy, or anything that does its own req/res work via a continuation.
The trap:
@Post("upload")
single(req: Request, res: Response) {
upload.single("file")(req, res, (err) => {
if (err) return res.status(400).json({ error: err.message });
res.json({ ok: true }); // <- runs async, AFTER the handler returns
});
// handler returns `undefined` here, BEFORE multer finishes
}
What happens:
- Multer kicks off async file parsing.
- Your handler returns
undefined. - Framework sees
undefined+res.headersSent === false-> callsres.end(). Headers now sent. - Multer finishes, callback runs,
res.json(...)-> "Cannot set headers after they are sent" crash.
The fix: make your handler async and await the middleware via a Promise wrapper.
function runMulter(
req: Request,
res: Response,
middleware: ReturnType<multer.Multer["single"]>,
): Promise<void> {
return new Promise((resolve, reject) => {
middleware(req, res, (err) => (err ? reject(err) : resolve()));
});
}
@controller("/upload")
class UploadController {
@Post("single")
async single(req: Request, res: Response) {
try {
await runMulter(req, res, upload.single("file"));
} catch (err) {
res.status(400).json({ success: false, error: (err as Error).message });
return;
}
res.json({ success: true, file: req.file });
}
}
Now the framework awaits your handler's promise, which resolves only after multer has fully responded. No double-write.
The same pattern applies to any callback-style middleware that holds the response: busboy, custom file pipelines, raw stream consumers, third-party body parsers.
Production-Ready Middleware Stacks
Create reusable middleware stacks for different scenarios:
import { combine, sequence, when } from "@expressots/adapter-express";
// Define reusable stacks
const apiStack = combine(CorsMiddleware, LoggingMiddleware, CompressionMiddleware);
const authStack = combine(JwtMiddleware, RoleMiddleware);
const validationStack = sequence(ValidateMiddleware, TransformMiddleware);
// Use in controllers
@controller("/api/v1")
class ApiController {
@Get("/public", apiStack)
publicEndpoint() { /* ... */ }
@Get("/protected", combine(apiStack, authStack))
protectedEndpoint() { /* ... */ }
@Post("/data", combine(apiStack, authStack, validationStack))
dataEndpoint() { /* ... */ }
}
Error Handling Best Practices
Handle errors at different points in the middleware chain:
@provide(ErrorBoundaryMiddleware)
class ErrorBoundaryMiddleware extends ExpressoMiddleware {
use(req: Request, res: Response, next: NextFunction): void {
try {
next();
} catch (error) {
// Handle sync errors
next(error);
}
}
}
// Global error handler configuration
async configureServices(): Promise<void> {
this.Middleware.setErrorHandler({
showStackTrace: await this.isDevelopment(),
logErrors: true,
customHandler: (error, req, res, next) => {
// Custom error formatting
},
});
}
Performance Optimization Tips
- Order matters - Put frequently-skipped conditional middleware early
- Use combine() for parallel-safe middleware groups
- Use sequence() when middleware has dependencies
- Avoid deep nesting - Flatten composition when possible
// Good: Flat and efficient
@Get("/api", combine(
CorsMiddleware,
when(() => process.env.NODE_ENV === "production", CompressionMiddleware),
AuthMiddleware,
LoggingMiddleware
))
// Avoid: Deeply nested
@Get("/api", combine(
CorsMiddleware,
combine(
when(() => true, combine(AuthMiddleware, LoggingMiddleware)),
CompressionMiddleware
)
))
Real-World Recipes
REST API with Full Security
const secureApiStack = combine(
CorsMiddleware,
HelmetMiddleware,
RateLimitMiddleware,
JwtAuthMiddleware,
AuditLogMiddleware
);
@controller("/api/v1/users", secureApiStack)
class UserController {
@Get("/") listUsers() { /* ... */ }
@Post("/", ValidationMiddleware) createUser() { /* ... */ }
@Get("/:id") getUser() { /* ... */ }
}
Conditional Feature Flags
@Get("/feature",
when(() => featureFlags.isEnabled("new-feature"), NewFeatureMiddleware),
unless(() => featureFlags.isEnabled("new-feature"), LegacyMiddleware)
)
featureEndpoint() { /* ... */ }
Named middleware registry (v4)
@expressots/core/middleware exposes a named middleware registry, a separate composition story from the route-level decorators above. Use the registry when you want to declare middleware once under a name and reference it by string in many places.
Lifecycle
import {
getMiddlewareRegistry,
resetMiddlewareRegistry,
} from "@expressots/core";
// Register
const registry = getMiddlewareRegistry();
registry.register("auth", AuthMiddleware);
registry.register("audit-log", AuditLogMiddleware);
// Clear (typically only in tests)
resetMiddlewareRegistry();
use(...names): resolve registered middleware
import { use } from "@expressots/core";
@Get("/", ...use("auth", "audit-log"))
listUsers() {}
use() returns an array of RequestHandlers looked up at request time, so the registry can be mutated between bootstrap and request without recompiling routes.
compose(...middlewares): sequential composition
import { compose } from "@expressots/core";
const apiChain = compose(corsMw, helmetMw, ...use("auth"));
app.use(apiChain);
when(condition, middleware): conditional execution
import { when } from "@expressots/core";
app.use(when((req) => req.headers["x-debug"] === "1", debugMw));
This is the core when (matches RequestHandler, runs at request time). The when() exported from @expressots/adapter-express is the decorator-level equivalent for @Get/@Post etc.
parallel(middleware): fire-and-forget
import { parallel } from "@expressots/core";
app.use(parallel(metricsMw)); // runs via setImmediate, never blocks the response
timeout(ms, middleware): hard timeout wrapper
import { timeout } from "@expressots/core";
app.use(timeout(2000, externalApiMw)); // emits a 504-style error after 2s
Preset API
Presets are applied through this.Middleware.applyPreset(name, overrides?). The override object deep-merges with the preset defaults so you only need to specify what you want to change.
import type { MiddlewareConfig } from "@expressots/core";
export class App extends AppExpress {
async configureServices(): Promise<void> {
this.Middleware.applyPreset("api", {
security: {
cors: { origin: "https://myapp.com", credentials: true },
rateLimit: { windowMs: 60_000, max: 50 },
},
compress: { level: 9 },
logger: false,
} satisfies Partial<MiddlewareConfig>);
}
}
Defining and reusing custom presets
this.Middleware.definePreset("edge", {
parse: { json: { limit: "1mb" } },
security: { headers: "helmet", cors: { origin: true } },
compress: { level: 6 },
});
this.Middleware.applyPreset("edge");
definePreset() registers the preset on the current middleware service. Once registered, it can be passed to applyPreset() by name with the same override semantics as built-in presets.
Profiler & introspection
The middleware profiler tracks per-middleware timing and can produce a pipeline analysis at runtime.
import { MiddlewareProfiler } from "@expressots/core";
const profiler = new MiddlewareProfiler();
profiler.enable();
app.use(profiler.wrap("cors", corsMw));
app.use(profiler.wrap("auth", authMw));
// Later:
const stats = profiler.getStats();
console.log(stats.totals); // { count, totalMs, p95Ms }
console.log(stats.byMiddleware); // per-name aggregate metrics
Combined with the Studio Requests view, the profiler is the source of the "Top slow middleware" chart.
Optional-package resolver
@expressots/core does not bundle Express middleware packages. It loads them on demand. Inspect what's available:
import {
isMiddlewareAvailable,
getAvailableMiddleware,
getRegisteredMiddleware,
MIDDLEWARE_REGISTRY,
} from "@expressots/core";
if (!isMiddlewareAvailable("cors")) {
console.warn("Install 'cors' to enable CORS support.");
}
const present = getAvailableMiddleware(); // ["cors", "helmet", "morgan", ...]
const registry = getRegisteredMiddleware(); // Names of every middleware backed by a known package
The MIDDLEWARE_REGISTRY constant is the static catalog of optional packages the framework knows how to import.
Support the Project
ExpressoTS is MIT-licensed open source. See the support guide to contribute.
