Dynamic Template System Architecture

Learn about the architecture behind ExpressoTS CLI's dynamic template and pricing system, designed to keep the CLI up-to-date without requiring constant releases.

The Problem We Solved​

Traditional CLI Issue:

  • Templates hardcoded in CLI source code
  • Every template update requires new CLI release
  • Users must update CLI to get latest templates
  • Pricing data becomes stale quickly
  • Community can't easily contribute

Our Solution:

  • Templates stored in external GitHub repository
  • CLI fetches templates on-demand
  • Community can contribute via pull requests
  • Pricing updates independent of CLI releases
  • Offline support with embedded fallbacks

Architecture Overview​

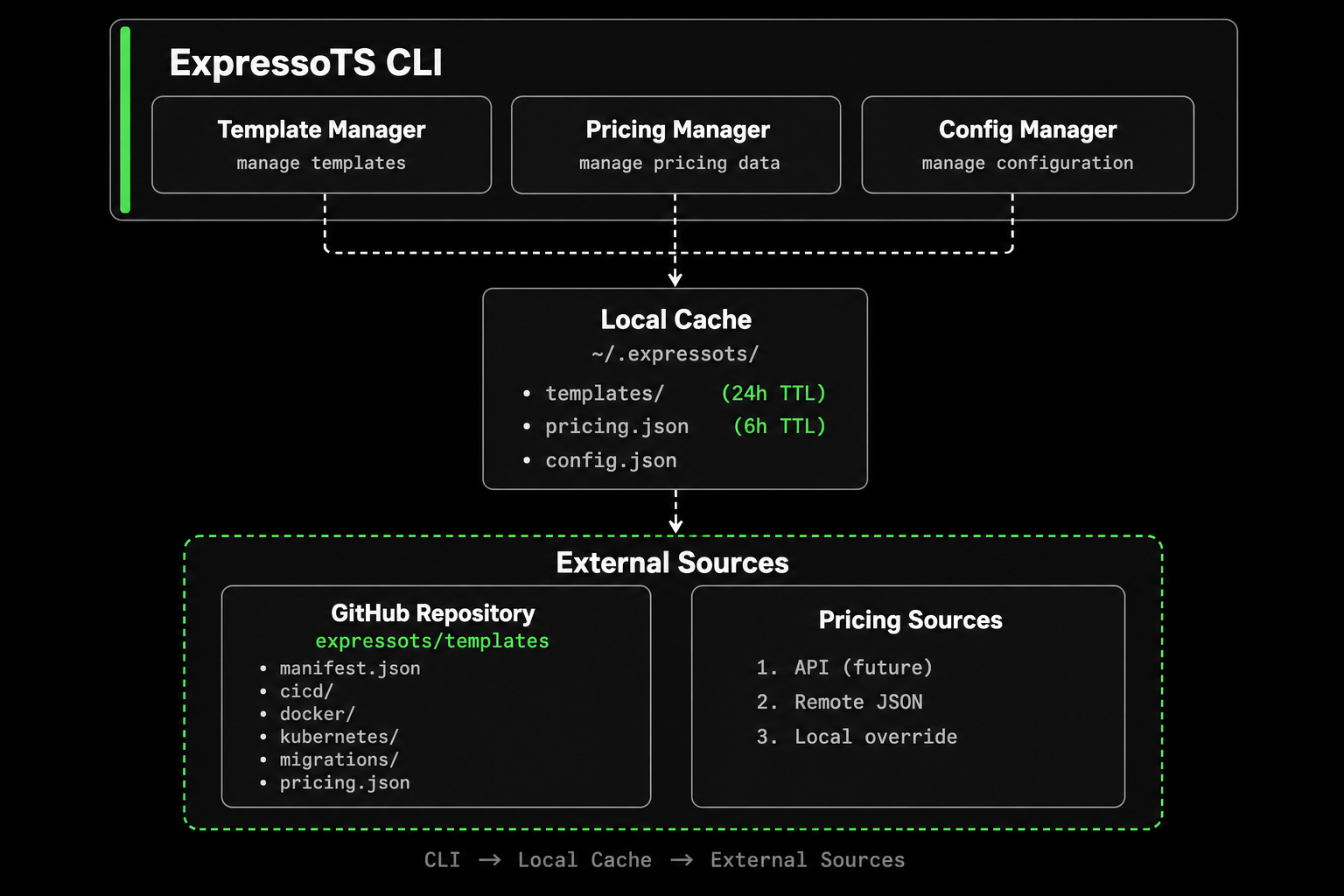

ExpressoTS CLI template system: Template, Pricing, and Config managers write to local cache under ~/.expressots/, which syncs with the expressots/templates GitHub repo and remote pricing sources

Component Details​

1. Template Manager​

Location: src/templates/manager.ts

Responsibilities:

  • Fetch templates from GitHub
  • Manage local cache
  • Render templates with variables
  • Handle offline mode
  • Provide embedded fallbacks

Key Methods:

// Fetch CI/CD template
await manager.fetchCICDTemplate("github", "comprehensive");

// Render with variables
manager.render(template, { variables: {...}, conditionals: {...} });

// Update all cached templates
await manager.updateCache();

2. Template Cache​

Location: src/templates/cache.ts

Storage: ~/.expressots/cache/templates/

Features:

  • 24-hour TTL (configurable)
  • Automatic expiration
  • Statistics tracking
  • Cross-platform paths

Cache Structure:

~/.expressots/
├── cache/
│   ├── templates/
│   │   ├── manifest-root.cache.json
│   │   ├── cicd-github-basic.cache.json
│   │   ├── docker-production.cache.json
│   │   └── ...
│   └── pricing.json
└── config.json

3. Template Fetcher​

Location: src/templates/fetcher.ts

Features:

  • HTTPS fetching from GitHub
  • Retry logic with exponential backoff
  • Timeout handling (5 seconds)
  • Rate limit detection
  • 404 handling

URL Pattern:

https://raw.githubusercontent.com/
  {repository}/      # e.g., expressots/templates
  {branch}/          # e.g., main
  {path}             # e.g., cicd/github/basic.yml

4. Template Renderer​

Location: src/templates/renderer.ts

Syntax Support:

  • Simple variables: {{name}}
  • Conditionals: {{#condition}}...{{/condition}}
  • Negative conditionals: {{^condition}}...{{/condition}}
  • Loops: {{#each items}}...{{/each}}
  • Nested variables: {{app.version}}

Example:

name: {{projectName}}

{{#includeSecurity}}
security:
  scan: enabled
{{/includeSecurity}}

5. Pricing Manager​

Location: src/costs/pricing-manager.ts

Features:

  • Cascading source fallback
  • 6-hour cache TTL
  • Cost calculation engine
  • Provider comparison
  • Optimization recommendations

Data Sources:

  1. API Source (sources/api-source.ts) - Future pricing API
  2. Remote JSON (sources/remote-json-source.ts) - GitHub-hosted
  3. Local JSON (sources/local-json-source.ts) - User override

6. Config Manager​

Location: src/config/manager.ts

Storage: ~/.expressots/config.json

Configuration:

{
  "templates": {
    "repository": "expressots/templates",
    "branch": "main",
    "cacheTTL": 86400
  },
  "pricing": {
    "sources": ["api", "remote", "local"],
    "cacheTTL": 21600,
    "customFile": null
  },
  "offline": false
}

Data Flow​

Template Generation Flow​

User runs: expressots cicd generate github
                    ↓
            Template Manager
                    ↓
         Check memory cache? → Yes → Use cached
                    ↓ No
          Check disk cache? → Yes → Use cached
                    ↓ No
         Offline mode? → Yes → Use embedded
                    ↓ No
         Fetch from GitHub
                    ↓
    Successful? → Yes → Cache & use
                    ↓ No
           Use embedded fallback
                    ↓
        Render with variables
                    ↓
         Write to filesystem

Pricing Fetch Flow​

User runs: expressots costs compare
                    ↓
            Pricing Manager
                    ↓
          Check cache (6h TTL)? → Valid → Use cached
                    ↓ No
         Try API source → Success → Cache & use
                    ↓ Failed
      Try Remote JSON → Success → Cache & use
                    ↓ Failed
      Try Local JSON → Success → Cache & use
                    ↓ Failed
           Return error

Performance Characteristics​

Template Loading​

Cold start (no cache):

  • Remote fetch: 1-3 seconds
  • Fallback to embedded: < 100ms

Warm start (cached):

  • Disk read: < 50ms
  • Memory cache: < 1ms

Pricing Loading​

Cold start (no cache):

  • API fetch: 500-1000ms (when available)
  • Remote JSON: 1-2 seconds
  • Local JSON: < 100ms

Warm start (cached):

  • Memory: < 1ms
  • Disk: < 50ms

Cache Optimization​

  • Template cache: 24-hour TTL balances freshness vs performance
  • Pricing cache: 6-hour TTL keeps pricing current
  • Manifest cache: Separate from individual templates
  • Automatic cleanup: No manual maintenance needed

Extensibility​

Adding New Template Categories​

To add a new category (e.g., "serverless"):

  1. Update types (src/templates/types.ts):
export type TemplateCategory =
  | "cicd"
  | "docker"
  | "kubernetes"
  | "migrations"
  | "serverless";  // Add new category
  1. Update fetcher (src/templates/fetcher.ts):
case "serverless":
  templatePath = `serverless/${platform}/${variant}.yml`;
  break;

  1. Update manifest schema in templates repository

  2. Create generator (src/serverless/generators/)

Adding New Variables​

Variables are defined in template loaders:

// src/cicd/generators/template-loader.ts
const renderOptions: RenderOptions = {
  variables: {
    projectName: options.projectName,
    // Add new variable:
    customField: options.customField,
  },
};

Then use in templates:

custom: {{customField}}

Adding New Pricing Sources​

Implement the PricingSource interface:

// src/costs/sources/new-source.ts
export class NewPricingSource implements PricingSource {
  name = "new-source";

  async fetch(): Promise<PricingData | null> {
    // Fetch implementation
  }
}

Register in PricingManager:

case "new-source":
  this.sources.push(new NewPricingSource());
  break;

Security Considerations​

Template Security​

  • No code execution: Templates are text-only
  • Variable validation: All inputs sanitized
  • No external scripts: Templates don't download scripts
  • Read-only fetching: Fetcher only reads, never writes to remote

Pricing Security​

  • Read-only access: Never writes to remote sources
  • Local override safe: User controls local file
  • No credentials: No API keys in public pricing data
  • HTTPS only: All remote fetches use HTTPS

Cache Security​

  • User-scoped: Cache stored in user's home directory
  • No sensitive data: Templates and pricing are public
  • Automatic cleanup: Old caches expire automatically
  • Configurable location: Can change via environment variables

Testing​

Unit Tests​

Template Renderer:

// test/templates/renderer.spec.ts
it("should substitute variables", () => {
  const result = renderer.render("Hello {{name}}", {
    variables: { name: "World" }
  });
  expect(result).toBe("Hello World");
});

Template Cache:

// test/templates/cache.spec.ts
it("should cache and retrieve templates", () => {
  cache.set("cicd", "github", data, "basic");
  const retrieved = cache.get("cicd", "github", "basic");
  expect(retrieved).toEqual(data);
});

Pricing Manager:

// test/pricing/pricing-manager.spec.ts
it("should validate pricing data", () => {
  const valid = manager.validatePricing(mockPricing);
  expect(valid).toBe(true);
});

Integration Tests​

Test end-to-end template generation:

# Generate and verify output
expressots cicd generate github --strategy basic
test -f .github/workflows/ci.yml

Testing Custom Templates​

# Point to test repository
expressots templates repo set test-org/test-templates

# Update cache
expressots templates update

# Generate and inspect
expressots cicd generate github
cat .github/workflows/ci.yml

# Reset
expressots templates repo reset

Monitoring & Observability​

Debug Mode​

Enable debug output:

export EXPRESSOTS_DEBUG=1
expressots cicd generate github

Shows:

  • Template source (remote/embedded)
  • Fetch timing
  • Cache hits/misses
  • Variable substitution

Status Commands​

# Template system status
expressots templates status

# Shows:
# - Online/offline
# - Cache statistics
# - Last update time

# Pricing status
expressots costs info

# Shows:
# - Data version
# - Last update
# - Source used
# - Cache age

Migration from v3​

If you're upgrading from ExpressoTS CLI v3:

No Breaking Changes​

All existing commands work the same:

# These work exactly as before
expressots cicd generate github
expressots containerize docker
expressots migrate generate --from heroku --to railway

New Features Available​

New commands added in v4:

# Template management (new in v4)
expressots templates list
expressots templates update

# Pricing management (new in v4)
expressots costs update
expressots costs info

Automatic Benefits​

You automatically get:

  • Latest CI/CD best practices
  • Current pricing data
  • Community-contributed improvements
  • Security scanning templates
  • Kubernetes deployment strategies

Migration Steps​

  1. Update CLI:

    npm update -g @expressots/cli

  2. Fetch latest templates:

    expressots templates update

  3. Update pricing data:

    expressots costs update

  4. Verify status:

    expressots templates status
    expressots costs info

That's it! You're now using the dynamic template system.

Best Practices​

For Development Teams​

  1. Set up organization templates:

    # One-time setup
    expressots templates repo set mycompany/expressots-templates

  2. Add to onboarding docs:

    New developers should run:
    - expressots templates repo set mycompany/templates
    - expressots templates update

  3. Keep templates updated:

    # Monthly or on project start
    expressots templates update
    expressots costs update

  4. Review generated files:

    • Always inspect generated CI/CD before committing
    • Test pipelines in CI environment
    • Customize as needed

For Organizations​

Create Organization Templates:

  1. Fork expressots/templates
  2. Customize for your needs:
    • Add company Docker registry
    • Include company-specific security scans
    • Add deployment to internal infrastructure
  3. Maintain your fork
  4. Team uses: expressots templates repo set mycompany/templates

Benefits:

  • Standardized configurations across projects
  • Company best practices codified
  • Easier onboarding
  • Compliance requirements met

For Open Source Projects​

Public Templates:

Create public templates optimized for OSS:

# Example: Add CodeCov, npm publish steps
expressots templates repo set opensource-org/oss-templates

Share with community in README:

## Development

We use ExpressoTS with custom OSS templates:

\`\`\`bash
expressots templates repo set opensource-org/oss-templates
expressots cicd generate github
\`\`\`

Advanced Usage​

Template Variables Deep Dive​

Accessing nested data:

image: {{docker.registry}}/{{docker.image}}:{{version}}

Array iteration:

{{#each environments}}
  - name: {{.}}
    value: "{{@index}}"
{{/each}}

Conditional nesting:

{{#isProduction}}
  {{#includeSecurity}}
    security: maximum
  {{/includeSecurity}}
{{/isProduction}}

Custom Pricing Calculations​

Override pricing logic for specific use cases:

{
  "providers": {
    "aws": {
      "serviceName": "ECS Fargate - Reserved",
      "cpuPerHour": 0.02424,
      "memoryPerGbHour": 0.002667,
      "notes": "1-year reserved instance pricing (40% discount)"
    }
  }
}

Environment-Specific Configurations​

# Development config
export EXPRESSOTS_TEMPLATE_REPO=dev-templates/templates
expressots templates update

# Production config
export EXPRESSOTS_TEMPLATE_REPO=prod-templates/templates
expressots cicd generate github

Troubleshooting​

Template Fetch Fails​

Symptom: Timeout or connection errors

Solutions:

  1. Check internet connection
  2. Verify GitHub is accessible
  3. Use offline mode: expressots --offline templates list
  4. Check repository setting: expressots templates status

Cache Issues​

Symptom: Old templates still being used

Solutions:

# Clear cache
expressots templates clear

# Force update
expressots templates update

# Verify
expressots templates status

Custom Repository Not Working​

Symptom: Templates not found from custom repo

Checklist:

  • Repository format: owner/repo (no URL prefix)
  • Branch exists (default: main)
  • manifest.json valid JSON
  • File structure matches manifest paths
  • Repository is public (or authenticated)

Debug:

# Check current config
cat ~/.expressots/config.json

# Test connection
expressots templates status

# Reset and retry
expressots templates repo reset
expressots templates update

Performance Tuning​

Faster Template Loading​

# Pre-cache templates for offline work
expressots templates update

# Set longer TTL (48 hours)
# Edit ~/.expressots/config.json
{
  "templates": {
    "cacheTTL": 172800
  }
}

Reduce Network Calls​

# Use embedded templates (no network)
expressots --offline cicd generate github

# Or set offline mode permanently
# Edit ~/.expressots/config.json
{
  "offline": true
}

Optimize CI/CD Usage​

In CI environments, use embedded templates to avoid rate limits:

# .github/workflows/deploy.yml
- name: Generate CI files
  run: expressots --offline cicd generate github

FAQ​

Q: Where are templates stored?​

A: Three places:

  1. Remote: GitHub at expressots/templates
  2. Cache: ~/.expressots/cache/templates/ (24h)
  3. Embedded: Built into CLI binary

Q: How often should I update templates?​

A:

  • Manually: Once a month or when starting new projects
  • Automatically: CLI updates cache after 24 hours
  • CI/CD: Use --offline to avoid rate limits

Q: Can I use private template repositories?​

A: Yes, but requires authentication:

# Use GitHub personal access token
export GITHUB_TOKEN=your_token
expressots templates repo set private-org/templates

Q: What happens if GitHub is down?​

A: CLI automatically falls back to embedded templates. You'll see:

Source: (embedded fallback)

Q: How do I contribute a new cloud provider?​

A: Two-step process:

  1. Add to pricing.json in templates repo (no CLI changes needed)
  2. Add type definition in CLI (src/costs/types.ts) - requires CLI PR

Q: Can I mix remote and local templates?​

A: Yes! Use remote for standard templates, override specific ones locally by setting custom repository or modifying cache files.

Q: Is there a size limit for templates?​

A: No hard limit, but keep templates reasonable:

  • CI/CD: < 500 lines
  • Docker: < 200 lines
  • Keep it maintainable

Q: How do I roll back to old template versions?​

A:

# Use specific branch
expressots templates repo set expressots/templates v1.0.0

# Or tag
expressots templates repo set expressots/templates tags/v1.0.0

Next Steps​
